AV Sync Documentation

Version History

Date [DD/MM/YY]	Comment	Version
29/07/23	First Release	1.0.0

Table of Contents

• Acronyms, Terms and Abbreviations
• Description
  • Introduction
• Component Runtime Execution Requirements
  • Initialization and Startup
  • Threading Model
  • Process Model
  • Memory Model
  • Power Management Requirements
  • Asynchronous Notification Model
  • Blocking calls
  • Internal Error Handling
  • Persistence Model
• Non-functional requirements
  • Logging and debugging requirements
  • Memory and performance requirements
  • Quality Control
  • Licensing
  • Build Requirements
  • Variability Management
  • Platform or Product Customization
• Interface API Documentation
  • Theory of operation and key concepts
  • Diagrams
    • AV Sync Code flow

Acronyms, Terms and Abbreviations

• AV Sync - Audio Video Synchronization
• HAL - Hardware Abstraction Layer
• API - Application Programming Interface
• Caller - Any user of the interface via the APIs
• SoC - System on Chip
• IOCTL - Input-Output Control

Description

AV Sync HAL provides an interface between the caller and SoC for audio and video synchronization in real time. The picture below shows the interactions between Caller, AV Sync HAL and SoC AV Sync.

flowchart TD
A[Caller] <--> B[AV Sync HAL] <--> C[SoC AV Sync]

style A fill:#99CCFF,stroke:#333
style B fill:#ffa,stroke:#333
style C fill:#fcc,stroke:#333

Introduction

AV Sync module is a software component that enables synchronization between audio and video frames in real-time media applications. This module is particularly important in media playback scenarios where the audio and video streams faces synchronization issues.

Component Runtime Execution Requirements

These requirements ensure that the HAL executes correctly within the run-time environment that it will be used in. Failure to meet these requirements will likely result in undefined and unexpected behaviour.

Initialization and Startup

Caller must initialize the AV Sync session by calling avsync_soc_init() before calling any other API.

Threading Model

This interface is not required to be thread safe. Any caller while invoking these HAL APIs must ensure calls are made in a thread safe manner.

Process Model

The interface is expected to support a single instantiation with a single process.

Memory Model

This interface will own any memory that it creates and will also be responsible to free. The caller will own the memory that it creates.

Power Management Requirements

This interface is not required to be involved in power management.

Asynchronous Notification Model

avsync_soc_free_frame_callback() sets the callback function for freeing any allocated video frames and metadata.

Blocking calls

This interface is required to have no blocking calls.

Internal Error Handling

All the APIs must return error synchronously as a return argument. HAL is responsible for handling system errors (e.g. out of memory) internally.

Persistence Model

There is no requirement for the interface to persist any setting information.

Non-functional requirements

Logging and debugging requirements

This interface is required to support DEBUG, INFO and ERROR messages. ERROR logs must be enabled by default. DEBUG and INFO is required to be disabled by default and enabled when needed.

Memory and performance requirements

This interface is required to not cause excessive memory and CPU utilization.

Quality Control

• This interface is required to perform static analysis, our preferred tool is Coverity.
• Have a zero-warning policy with regards to compiling. All warnings are required to be treated as errors.
• Copyright validation is required to be performed, e.g.: Black duck, FossID.
• Use of memory analysis tools like Valgrind are encouraged to identify leaks/corruptions.
• HAL Tests will endeavour to create worst case scenarios to assist investigations.
• Improvements by any party to the testing suite are required to be fed back.

Licensing

The HAL implementation is expected to released under the Apache License 2.0.

Build Requirements

The source code must build into a shared library and must be named as libXavsync.so where X denotes the SoC AV Sync module. The build mechanism must be independent of Yocto.

Variability Management

Any change to the interface must be reviewed and approved by component architects and owners.

Platform or Product Customization

The SoC vendor must provide adequate platform customization for the implementation of this module.

Interface API Documentation

API documentation will be provided by Doxygen which will be generated from the header files.

Theory of operation and key concepts

The caller is expected to have complete control over the life cycle of the HAL.

• Caller will be calling the HAL APIs, which are responsible to call the respective SoC specific AV Sync APIs, and that is further expected to handle the low-level synchronization related operations using IOCTL calls.
• The list of interfaces are:
  • avsync_soc_init()
  • avsync_soc_term()
  • avsync_soc_set_mode()
  • avsync_soc_free_frame_callback()
  • avsync_soc_push_frame()
  • avsync_soc_pop_frame()
  • avsync_soc_set_rate()
  • avsync_soc_pause()
  • avsync_soc_set_interval() avsync_soc_eos()
• Initialize the HAL using function avsync_soc_init() before making any other API calls. If this call fails, the HAL must return the respective error. The caller initializes the AV Sync session with refresh rate and sync type to get session id, session.
• avsync_soc_free_frame_callback() registers a callback function responsible for releasing video frame and metadata that is no longer required.
• The push and pop operations on the video frames to / from the queue in the AV Sync module will be done using avsync_soc_push_frame() and avsync_soc_pop_frame() respectively. avsync_soc_set_interval() is used to update the vblank interval.
• avsync_soc_pause() and avsync_soc_eos() must handle the playback conditions 'pause / resume' and 'end-of-stream' respectively.
• The sync mode, playback rate and vsync interval can be set using avsync_soc_set_mode(), avsync_soc_set_rate() and avsync_soc_set_interval() respectively. avsync_soc_set_mode() is used to set the sync mode that determines how the SoC synchronizes the audio and video. Supported sync types are Video Master, Audio Master and Program Clock Reference Master. avsync_soc_set_rate() will be called before avsync_soc_pause() to check if the playback is in normal mode(1x) and is not already paused.
• The AV Sync session will be terminated using avsync_soc_term() API and must deallocate all the resources which are created by the avsync_soc_init().

Diagrams

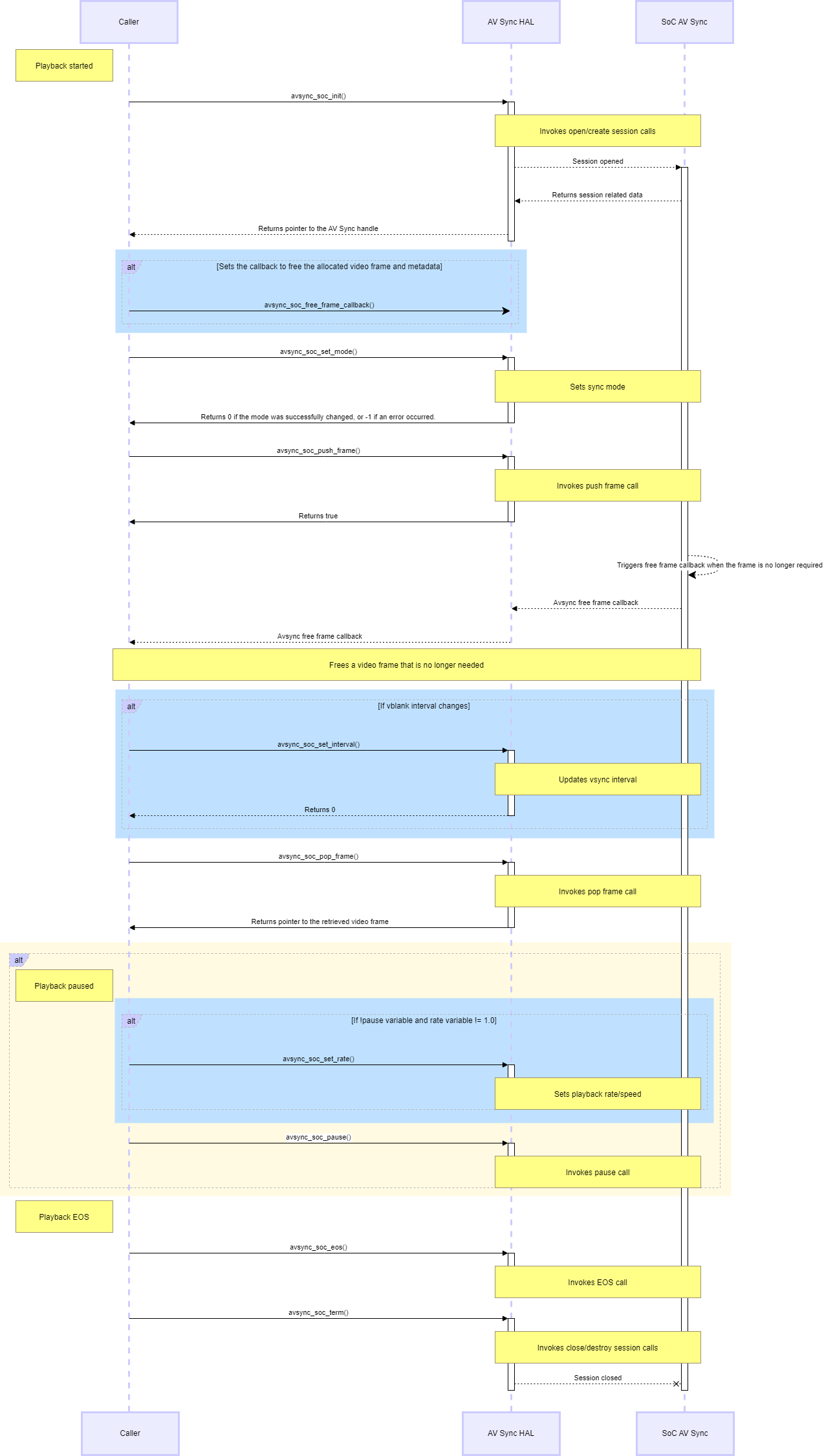

AV Sync Code Flow

sequenceDiagram

participant Caller
participant AV Sync HAL
participant SoC AV Sync

note left of Caller:Playback started

Caller->>+AV Sync HAL:avsync_soc_init()
note over AV Sync HAL,SoC AV Sync:Invokes open/create session calls
AV Sync HAL-->>SoC AV Sync:Session opened
activate SoC AV Sync
SoC AV Sync-->>AV Sync HAL:Returns session related data
AV Sync HAL-->>-Caller:Returns pointer to the AV Sync handle

rect rgb(191, 225, 255)
alt Sets the callback to free the allocated video frame and metadata
Caller-)AV Sync HAL:avsync_soc_free_frame_callback()
end
end

Caller->>+AV Sync HAL:avsync_soc_set_mode()
note over AV Sync HAL,SoC AV Sync:Sets sync mode
AV Sync HAL->>-Caller: Returns 0 if the mode was successfully changed, or -1 if an error occurred.

Caller->>+AV Sync HAL:avsync_soc_push_frame()
note over AV Sync HAL,SoC AV Sync:Invokes push frame call
AV Sync HAL->>-Caller:Returns true

SoC AV Sync--)SoC AV Sync: Triggers free frame callback when the frame is no longer required
SoC AV Sync-->>AV Sync HAL: Avsync free frame callback
AV Sync HAL-->>Caller: Avsync free frame callback
note over Caller,SoC AV Sync: Frees a video frame that is no longer needed

rect rgb(191, 225, 255)
alt If vblank interval changes
Caller->>+AV Sync HAL:avsync_soc_set_interval()
note over AV Sync HAL,SoC AV Sync:Updates vsync interval
AV Sync HAL-->>-Caller:Returns 0
end
end

Caller->>+AV Sync HAL:avsync_soc_pop_frame()
note over AV Sync HAL,SoC AV Sync:Invokes pop frame call
AV Sync HAL->>-Caller:Returns pointer to the retrieved video frame

rect rgb(255,250,225)
alt
note left of Caller:Playback paused

rect rgb(193, 225, 255)
alt  If !pause variable and rate variable != 1.0
Caller->>+AV Sync HAL:avsync_soc_set_rate()
note over AV Sync HAL,SoC AV Sync:Sets playback rate/speed
deactivate AV Sync HAL
end
end

Caller->>+AV Sync HAL:avsync_soc_pause()
note over AV Sync HAL,SoC AV Sync:Invokes pause call
deactivate AV Sync HAL
end
end

note left of Caller:Playback EOS

Caller->>+AV Sync HAL:avsync_soc_eos()
note over AV Sync HAL,SoC AV Sync:Invokes EOS call
deactivate AV Sync HAL

Caller->>+AV Sync HAL:avsync_soc_term()
note over AV Sync HAL,SoC AV Sync:Invokes close/destroy session calls
AV Sync HAL--xSoC AV Sync:Session closed
deactivate SoC AV Sync
deactivate AV Sync HAL
