Introduction

The RDKC Media Server is much more than a multi-format, multi-protocol server that delivers your media rich content across multiple screens and platforms. The RDK camera software runs on RPi-0 device. This page dedicated to bringing up and validation of RMS functionality in R-Pi Zero.

Required Equipment

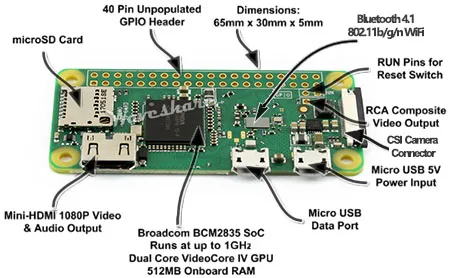

  • Raspberry Pi 0 Device
  • SD Card
  • Power Cable
  • OTG Cable
  • Standard USB keyboard
  • Mini HDMI connector
  • HDMI Cable
  • Television set/monitor with HDMI input

System Setup


Please refer below link for RPI-0 Environment setup

RDK-C Environment Setup

RMS Flow - Environment Setup Diagram


Yocto Build Steps

Build steps
$ repo init -u "https://code.rdkcentral.com/r/manifests" -m rdkc-nosrc.xml -b rdk-next
$ repo sync
$ source meta-cmf-raspberrypi/setup-environment
	select meta-cmf-raspberrypi/conf/machine/raspberrypi0-rdk-camera.conf
$ bitbake rdk-generic-camera-image

Image Flash Procedure

Image Flash step
$ sudo dd if="Image Name" of="Device Name" bs=4M

Example:
sudo dd if=rdk-generic-camera-image_default_20200130060729.rootfs.rpi-sdimg of=/dev/sdb bs=4M

RMS Validation Procedure

STEP 1:

Add require SSID and PSK in /etc/wpa_supplicant.conf file in below format

network={

ssid="username"

psk="password"

}

Console output
ctrl_interface=/var/run/wpa_supplicant
ctrl_interface_group=0
update_config=1

network={
ssid="XXXX"
psk="YYYYYYYYY"
}


STEP 2:

Reboot the Target

After Reboot don't do step 1 and 2.

Note : Step 1 & 2 is only applicable for fresh target boot-up with new image.


STEP 3:

Modify needed resolution in rms configuration file

Supported Resolution:

SD:

Width - 640 , Height - 480

Width - 720 , Height - 576

HD:

Width - 1280 , Height - 720

FULL HD  :

Width - 1920 , Height - 1080


Modify resolution in below configuration file

cd /usr/local/rms/bin

vi rms.conf

Console output
RRSIP=XXX.XXX.XXX.XXX
RRSPORT=81
ROOMID=rpi0
RRSSSL=0
WIDTH=1280
HEIGHT=72

After resolution modification need to reboot the target.

Note: This step is not necessary,it is depends on your resolution validation.


STEP 4:

WiFi connection is must needed for RMS validation.

Check WiFi connection by using below command.

ifconfig

Console output
root@raspberrypi0-rdk-camera:~# ifconfig
lo        Link encap:Local Loopback
          inet addr:127.0.0.1  Mask:255.0.0.0
          inet6 addr: ::1/128 Scope:Host
          UP LOOPBACK RUNNING  MTU:65536  Metric:1
          RX packets:87 errors:0 dropped:0 overruns:0 frame:0
          TX packets:87 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:4552 (4.4 KiB)  TX bytes:4552 (4.4 KiB)

wlan0     Link encap:Ethernet  HWaddr B8:27:EB:2E:72:2B
          inet addr:192.168.43.246  Bcast:192.168.43.255  Mask:255.255.255.0
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:23 errors:0 dropped:0 overruns:0 frame:0
          TX packets:44 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:2893 (2.8 KiB)  TX bytes:5887 (5.7 KiB)


STEP 5:

check loaded module by using below command

lsmod

Console output
root@raspberrypi0-rdk-camera:~# lsmod
Module                  Size  Used by
bcm2835_v4l2           40563  0
v4l2_common             4809  1 bcm2835_v4l2
videobuf2_vmalloc       6264  1 bcm2835_v4l2
videobuf2_memops        1528  1 videobuf2_vmalloc
videobuf2_v4l2         12640  1 bcm2835_v4l2
videobuf2_core         27389  2 bcm2835_v4l2,videobuf2_v4l2
videodev              154457  4 v4l2_common,videobuf2_core,bcm2835_v4l2,videobuf2_v4l2
media                  23307  1 videodev
brcmfmac              258239  0
brcmutil                7590  1 brcmfmac
snd_bcm2835            21405  0
cfg80211              492836  1 brcmfmac
snd_pcm                79872  1 snd_bcm2835
rfkill                 19936  3 cfg80211
snd_timer              20294  1 snd_pcm
snd                    52949  3 snd_timer,snd_bcm2835,snd_pcm
lirc_rpi                6840  0
lirc_dev                7533  1 lirc_rpi
uio_pdrv_genirq         3469  0
uio                     8703  1 uio_pdrv_genirq
fixed                   2876  0
sch_fq_codel            9662  2
ipv6                  384101  18


STEP 6:

check camera device there or not by using below command

ls /dev/video0

Console output
root@raspberrypi0-rdk-camera:~# ls /dev/video0
/dev/video0


STEP 7:

On Bowser of PC:
http://community.dummyersserver.com
Need to modify roomid as rpi0

Press "PLAY" button in WebBrowser page.


We can able to see the capturing content on WebBrowser.
