Introduction

RDK Services are nothing but the RDK components are implemented as Thunder Nano Services and maintained in RDK Central's GitHub https://github.com/rdkcentral/rdkservices

Initially, this is started in the Comcast side and validated on the RPi reference platform and the Yocto recipe is maintained only in meta-rdk-video layer.  Recently RDK services are made open-source and available in GitHub so, the recipe to avail this on CMF community (meta-cmf-video layer) as rdkservices_git.bbappend which points to GitHub's repository.

Currently, RDK services are excluded from Thunder Image builds and this depends with ServiceManager and WPE WebKit for (OpenCDM Implementation)

RDK UI Services works on top of RDK Shell which is an application management native component that provides the Wayland Composition. RDK Shell will be a small shared library that provides this feature. A sample binary is available to validate and also integrated as an RDK Service.

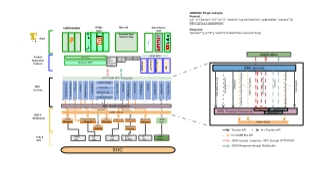

Architecture Wiki Page: RDKShell

For the Integration of RDK Services on Generic RDK image, below are the important components

  • RDK Shell
  • WPE's Thunder Framework
  • RDK Services (Thunder Nano services developed by Comcast)
  • WPE Framework's UI (for Controller UI)
  • WebKit Browser Plugin (A Thunder Nano service for WPE WebKit Browser)
  • RDK Reference App

RDK Images

Issues in JIRA

Build Issues

S. No.Issue Description / logRoot CauseAction done / Changes atRemarks
1ERROR: Layer 'cmf-raspberrypi' depends on layer 'wpe-layer', but this layer is not enabled in your configurationmeta-cmf-raspberrypi's layer has wpe layer dependency

Removed wpe dependency from meta-cmf-raspberrypi/conf/layer.conf

Change-set: 43688

addressed from REFPLTV-521
2ERROR: Nothing RPROVIDES 'gstreamer1.0-plugins-ugly' (but meta-rdk/recipes-core/packagegroups/packagegroup-rdk-media-common.bb RDEPENDS on or otherwise requires it)
ERROR: gstreamer1.0-plugins-ugly was skipped: because it has a restricted license not whitelisted in LICENSE_FLAGS_WHITELIST
RDK Media common package group has GStreamer ugly plugins run-time dependency

commercial Whitelist flag added for Gstreamer ugly plugin and mpg123.

Also lame is not required for RDK build as it has a restricted license.

Change-set: 43513

addresed from
REFPLTV-518

3ERROR: Nothing RPROVIDES 'gstreamer1.0-plugins-ugly-mpg123' (but meta-rdk-ext/recipes-extended/wpe-webkit/wpe-webkit_0.4.4.bb RDEPENDS on or otherwise requires it)wpe-webkit has Gstreamer ugly plugins run-time dependency
4| build-raspberrypi-rdk-mc/tmp/work/cortexa7t2hf-neon-vfpv4-rdk-linux-gnueabi/wpe-webkit/0.4.4+gitAUTOINC+5f899bc2e0-r0/git/Source/WebCore/platform/graphics/cairo/CairoUtilities.cpp:46:22: fatal error: cairo-gl.h: No such file or directory
| #include <cairo-gl.h>
| ^
| compilation terminated.
cairo bbappend from meta-rdk-ext is masked from meta-cmf-raspberrypi as meta-wpe has the same bbappend

meta-wpe 's cairo bbappend is masked for Non-Thunder images and meta-rdk-ext 's cairo bbappend is masked for Thunder images

Change-set: 43722

addressed from
REFPLTV-519
5
  • Not able to get the ssh terminal once the image is booted
  • No way to edit RDK Services configuration file as the rootfs generated with read-only mode
bbappend files for RDK Images which are maintained in meta-cmf-raspberrypi layer are disabled the read-only-rootfs IMAGE Feature only under that bbappend scope so, if any new image bbappend introduced, the image generated with this feature.removed read-only-rootfs feature globally for all RPI images
Change-set: 43245
addressed from
REFPLTV-517
6

No controller UI on web browser launched though the port 9998 enabled (confirmed through netstat command)

The binding address is not set for WPE Framework

+ WPEFRAMEWORK_BINDING_rpi = "0.0.0.0"

Change-set : 43520

addressed from
REFPLTV-520
7RDK Shell distro feature to be enabledRDK Shell distro feature includes rdkshell, wpeframework-ui and rdk referenceapp components into image

Enabled in raspberrypi-rdk-mc.conf file

Change-set: 43690

addressed from
REFPLTV-522
8new manifest to avoid meta-wpemeta-wpe layer is no more needed for RDK servicesa new manifest created on master branch of
http://code.rdkcentral.com/r/reference/manifests

addressed from REFPLTV-516

9remove meta-wpe layer dependency in meta-cmf-raspberrypi layer
removed

addressed from REFPLTV-521

Runtime issues


IssueResolutionRemarks
1

REFPLTV-590 - Getting issue details... STATUS
REFPLTV-597 - Getting issue details... STATUS

Fixed
2

REFPLTV-592 - Getting issue details... STATUS

In progress
3

REFPLTV-595 - Getting issue details... STATUS

In progress
4

REFPLTV-596 - Getting issue details... STATUS

Fixed
5

REFPLTV-598 - Getting issue details... STATUS

Fixed
6

REFPLTV-599 - Getting issue details... STATUS

Fixed
7

REFPLTV-600 - Getting issue details... STATUS

Fixed
8

REFPLTV-603 - Getting issue details... STATUS

Fixed
9

REFPLTV-604 - Getting issue details... STATUS

Fixedtemporary fix on Rpi

Test Execution

T

Key

SummaryAssigneeReporterPStatusResolutionCreatedUpdatedDueRemarks

REFPLTV-523

RDK Services:Selected plugins are not displayed in left side of controller UI.Josekutty KuriakoseGopinath ChandranIN PROGRESSUnresolved31-Aug-202031-Aug-2020

REFPLTV-524

RDK Services:For "org.rdk.AVInput.1.numberOfInputs" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDWon't fix31-Aug-202031-Aug-2020
Not applicable on Rpi

REFPLTV-525

RDK Services: For "org.rdk.AVInput.1.currentVideoMode" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDWon't fix31-Aug-202031-Aug-2020
Not applicable on Rpi

REFPLTV-526

RDK Services:For "org.rdk.ActivityMonitor.1.getApplicationMemoryUsage" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDUser Input31-Aug-202031-Aug-2020

REFPLTV-527

RDK Services: For "org.rdk.ActivityMonitor.1.onMemoryThresholdOccurred" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDUser Input31-Aug-202031-Aug-2020

REFPLTV-528

RDK Services: For "org.rdk.ContinueWatching.setApplicationToken" curl command response get failedJosekutty KuriakoseGopinath ChandranRESOLVEDUser Input31-Aug-202031-Aug-2020

REFPLTV-529

RDK Services: For "org.rdk.ContinueWatching.getApplicationToken" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDWon't fix31-Aug-202031-Aug-2020
Not applicable on Rpi

REFPLTV-530

RDK Services: For "org.rdk.ContinueWatching.deleteApplicationToken" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDWon't fix31-Aug-202031-Aug-2020
Not applicable on Rpi

REFPLTV-531

RDK Services: For "org.rdk.dataCapture.1.getAudioClip" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDWon't fix31-Aug-202031-Aug-2020
Not applicable on Rpi

REFPLTV-532

RDK Services: For "org.rdk.DeviceDiagnostics.1.getConfiguration" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDWon't fix31-Aug-202031-Aug-2020
Not applicable on Rpi

REFPLTV-533

RDK Services: For "org.rdk.DisplaySettings.1.getSupportedTvResolutions" curl command response get failed.Josekutty KuriakoseGopinath ChandranIN PROGRESSUnresolved31-Aug-202031-Aug-2020

REFPLTV-534

RDK Services: For "org.rdk.DisplaySettings.1.setMS12AudioCompression" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDWon't fix31-Aug-202031-Aug-2020
Not applicable on Rpi

REFPLTV-535

RDK Services: For "org.rdk.DisplaySettings.1.getMS12AudioCompression" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDWon't fix31-Aug-202031-Aug-2020
Not applicable on Rpi

REFPLTV-536

RDK Services: For "org.rdk.DisplaySettings.1.setDolbyVolumeMode" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDWon't fix31-Aug-202031-Aug-2020
Not applicable on Rpi

REFPLTV-537

RDK Services: For "org.rdk.DisplaySettings.1.getDolbyVolumeMode" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDWon't fix31-Aug-202031-Aug-2020
Not applicable on Rpi

REFPLTV-538

RDK Services: For "org.rdk.DisplaySettings.1.setDialogEnhancement" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDWon't fix31-Aug-202031-Aug-2020
Not applicable on Rpi

REFPLTV-539

RDK Services: For "org.rdk.DisplaySettings.1.setIntelligentEqualizerMode" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDWon't fix31-Aug-202031-Aug-2020
Not applicable on Rpi

REFPLTV-540

RDK Services: For "org.rdk.DisplaySettings.1.getDialogEnhancement" curl command response get failed. Josekutty KuriakoseGopinath ChandranRESOLVED Won't fix31-Aug-202031-Aug-2020
Not applicable on Rpi

REFPLTV-541

RDK Services: For "org.rdk.DisplaySettings.1.getIntelligentEqualizerMode" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDWon't fix31-Aug-202031-Aug-2020
Not applicable on Rpi

REFPLTV-542

RDK Services: For "org.rdk.DisplaySettings.1.isConnectedDeviceRepeater" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDWon't fix31-Aug-202031-Aug-2020
Not applicable on Rpi

REFPLTV-543

RDK Services: For "org.rdk.Network.1.isInterfaceEnabled" curl command response get failed.Josekutty KuriakoseGopinath ChandranIN PROGRESSUnresolved31-Aug-202031-Aug-2020

REFPLTV-544

RDK Services: For "org.rdk.Network.1.setInterfaceEnabled" curl command response get failed.Josekutty KuriakoseGopinath ChandranIN PROGRESSUnresolved31-Aug-202031-Aug-2020

REFPLTV-545

RDK Services: For "org.rdk.Network.1.setDefaultInterface" curl command response get failed.Josekutty KuriakoseGopinath ChandranIN PROGRESSUnresolved31-Aug-202031-Aug-2020

REFPLTV-546

RDK Services: For "org.rdk.Network.1.getIPSettings" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDOther31-Aug-202031-Aug-2020
Not implemented yet

REFPLTV-547

RDK Services: For "org.rdk.Network.1.setIPSettings" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDOther31-Aug-202031-Aug-2020
Not implemented yet

REFPLTV-548

RDK Services: For "org.rdk.RDKShell.1.moveToFront" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDUser Error31-Aug-202031-Aug-2020

REFPLTV-549

RDK Services: For "org.rdk.RDKShell.1.moveToBack" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDUser Error31-Aug-202031-Aug-2020

REFPLTV-550

RDK Services: For "org.rdk.RDKShell.1.moveBehind" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDUser Error31-Aug-202031-Aug-2020

REFPLTV-551

RDK Services: For "org.rdk.RDKShell.1.setFocus" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDUser Error31-Aug-202031-Aug-2020

REFPLTV-552

RDK Services: For "org.rdk.RDKShell.1.kill" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDUser Error31-Aug-202031-Aug-2020

REFPLTV-553

RDK Services: For "org.rdk.RDKShell.1.addKeyIntercept" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDUser Error31-Aug-202031-Aug-2020

REFPLTV-554

RDK Services: For "org.rdk.RDKShell.1.getBounds" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDUser Error31-Aug-202031-Aug-2020

REFPLTV-555

RDK Services: For "org.rdk.RDKShell.1.setBounds" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDUser Error31-Aug-202031-Aug-2020

REFPLTV-556

RDK Services: For "org.rdk.RDKShell.1.getVisibility" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDUser Error31-Aug-202031-Aug-2020

REFPLTV-557

RDK Services: For "org.rdk.RDKShell.1.setVisibility" curl command response get failed.

Josekutty KuriakoseGopinath ChandranRESOLVEDUser Error31-Aug-202031-Aug-2020

REFPLTV-558

RDK Services: For "org.rdk.RDKShell.1.getOpacity" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDUser Error31-Aug-202031-Aug-2020

REFPLTV-559

RDK Services: For "org.rdk.RDKShell.1.addKeyListener" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDUser Error31-Aug-202031-Aug-2020

REFPLTV-560

RDK Services: For "org.rdk.RDKShell.1.removeKeyListener" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDUser Error31-Aug-202031-Aug-2020

REFPLTV-561

RDK Services: For "org.rdk.RDKShell.1.animateTo" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDOther31-Aug-202031-Aug-2020
Not implemented yet

REFPLTV-562

RDK Services: For "org.rdk.RDKShell.1.getScale" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDOther31-Aug-202031-Aug-2020
Not implemented yet

REFPLTV-563

RDK Services: For "org.rdk.RDKShell.1.generateKey" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDCannot Reproduce31-Aug-202031-Aug-2020

REFPLTV-564

RDK Services: For "org.rdk.RDKShell.1.suspendApplication" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDOther31-Aug-202031-Aug-2020
Not implemented yet

REFPLTV-565

RDK Services: For "org.rdk.RDKShell.1.resumeApplication" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDOther31-Aug-202031-Aug-2020
Not implemented yet

REFPLTV-566

RDK Services: For "org.rdk.System.1.enableMoca" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDWon't Fix31-Aug-202031-Aug-2020
NA for RPi

REFPLTV-567

RDK Services: For "org.rdk.System.1.disableMoca" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDWon't Fix31-Aug-202031-Aug-2020
NA for RPi

REFPLTV-568

RDK Services: For "org.rdk.System.1.getDeviceInfo" curl command response get failed.Josekutty KuriakoseGopinath ChandranIN PROGRESSUnresolved31-Aug-202031-Aug-2020

REFPLTV-569

RDK Services: For "org.rdk.System.1.getStateInfo" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDWon't Fix31-Aug-202031-Aug-2020
NA for RPi

REFPLTV-570

RDK Services: For "org.rdk.System.1.setPowerState" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDUser Error31-Aug-202031-Aug-2020

REFPLTV-571

RDK Services: For "org.rdk.System.1.hasRebootBeenRequested (v1)" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDUser Error31-Aug-202031-Aug-2020

REFPLTV-572

RDK Services: For "org.rdk.System.1.setMode" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDUser Error31-Aug-202031-Aug-2020

REFPLTV-573

RDK Services: For "org.rdk.System.1.setPreferredStandbyMode" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDUser Error31-Aug-202031-Aug-2020

REFPLTV-574

RDK Services: For "org.rdk.System.1.getPreferredStandbyMode" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDUser Error31-Aug-202031-Aug-2020

REFPLTV-575

RDK Services: For "org.rdk.Timer.1.suspend" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDUser Error31-Aug-202031-Aug-2020

REFPLTV-576

RDK Services: For "org.rdk.Timer.1.resume" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDUser Error31-Aug-202031-Aug-2020

REFPLTV-577

RDK Services: For "org.rdk.Wifi.1.getCurrentState" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDOther31-Aug-202031-Aug-2020
Wifi & Bluetooth package to be enabled








REFPLTV-578

RDK Services: For "org.rdk.Wifi.1.startScan" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDDone31-Aug-202031-Aug-2020

REFPLTV-579

RDK Services: For "org.rdk.Wifi.1.stopScan" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDDone31-Aug-202031-Aug-2020

REFPLTV-580

RDK Services: For "org.rdk.Wifi.1.getConnectedSSID" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDOther31-Aug-202031-Aug-2020

REFPLTV-581

RDK Services: For "org.rdk.Wifi.1.connect" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDOther31-Aug-202031-Aug-2020

REFPLTV-582

RDK Services: For "org.rdk.Wifi.1.disconnect" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDOther31-Aug-202031-Aug-2020

REFPLTV-583

RDK Services: For "org.rdk.Wifi.1.initiateWPSPairing" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDOther31-Aug-202031-Aug-2020

REFPLTV-584

RDK Services: For "org.rdk.Wifi.1.cancelWPSPairing" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDOther31-Aug-202031-Aug-2020

REFPLTV-585

RDK Services: For "org.rdk.Wifi.1.getPairedSSID" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDOther31-Aug-202031-Aug-2020

REFPLTV-586

RDK Services: For "org.rdk.Wifi.1.getPairedSSIDInfo" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDOther31-Aug-202031-Aug-2020

REFPLTV-587

RDK Services: For "org.rdk.Warehouse.1.setFrontPanelState" curl command response get failed.Josekutty KuriakoseGopinath ChandranRESOLVEDWon't Fix31-Aug-202031-Aug-2020
NA for RPi
REFPLTV-605RDKService: Network plugin is not giving the interface namesRajkumar NarayananElizabeth JoseNEW Unresolved25-Sep-202025-Sep-2020

REFPLTV-606RDKService: org.rdk.Network.1.trace is giving "cannot open shared object file" errorRajkumar NarayananElizabeth JoseNEW Unresolved25-Sep-202025-Sep-2020

REFPLTV-607RDKService: org.rdk.System.1.getXconfParams is giving empty estb macRajkumar NarayananElizabeth JoseNEW Unresolved25-Sep-202025-Sep-2020

REFPLTV-608RDKService: org.rdk.System.1.getRFCConfig is giving "(cannot open shared object file" errorRajkumar NarayananElizabeth JoseNEW Unresolved25-Sep-202025-Sep-2020

REFPLTV-609RDKService: org.rdk.RDKShell.1.getClients is not listing any clientsRajkumar NarayananElizabeth JoseNEW Unresolved25-Sep-202025-Sep-2020

REFPLTV-610RDKService: Bluetooth devices are not listing in RPIRajkumar NarayananElizabeth JoseIN PROGRESSFixed25-Sep-202006-Oct-2020

REFPLTV-611

RDKService: org.rdk.Wifi.1.getCurrentState is giving false in RPI-HYB

Rajkumar NarayananElizabeth JoseIN PROGRESSFixed29-Sep-202006-Oct-2020

REFPLTV-612

RDKService: The UI is not launching with ethernet disconnected.Rajkumar NarayananElizabeth JoseNEW Unresolved29-Sep-2020


REFPLTV-613

RDKService: RPI terminal is popping on switching between applications in UI

Rajkumar NarayananElizabeth JoseNEW Unresolved29-Sep-2020


REFPLTV-614

RDKService: RPI is not accessible after multiple rebootsRajkumar NarayananElizabeth JoseNEW Unresolved29-Sep-2020


REFPLTV-615

RDKService: Channel Change Stress test is stuck in less than 200 repeatsRajkumar NarayananElizabeth JoseNEW Unresolved29-Sep-2020


REFPLTV-617RDK Services: For "getAudioInfo" curl command response get failed.Josekutty KuriakoseRajkumar Narayanan NEW Unresolved

01-Oct-2020




REFPLTV-618org.rdk.Bluetooth.1.sendAudioPlaybackCommand failed on R-PiJosekutty KuriakoseMoorthy BaskarNEW Unresolved01-Oct-2020


REFPLTV-619rdkservices: About tab on Switcher App not launchingJosekutty KuriakoseMoorthy BaskarNEW Unresolved01-Oct-2020


REFPLTV-620RDK Services: UI overlap issues in switcher app. Josekutty Kuriakose Rajkumar NarayananNEW Unresolved01-Oct-2020


REFPLTV-621RDK services: disconnect is functionally not happening on wifi service Josekutty KuriakoseMoorthy BaskarNEW Unresolved01-Oct-2020
