Overview

An RDK-V Emulator App Manager basically focuses on emulating the features such as: remote control unit, RDK services api validation's, testing automation, virtual box manager, application manager etc. and adding many more features to provide support to application developers and testers to make there life easier with new RDK-V Emulator App Manager. It comes in a form of installer package that can be installed on desktop pc and launched along with virtual box.

Prerequisite

Emulator app manager and Virtual remote has been developed and tested on below environment

  • VS Code: Version-1.63.0

Visual Studio Code is a source-code editor made by Microsoft for Windows, Linux and macOS.

  • Electron: 13.5.2

Electron (formerly known as Atom Shell) is a free and open-source software framework developed and maintained by GitHub. It allows for the development of desktop GUI applications using web technologies: it combines the Chromium rendering engine and the Node. js runtime.

  • Google Chrome: Version 96.0.4664.93 (Official Build) (64-bit)

Google Chrome is a cross-platform web browser developed by Google.

  • Node.js: 14.16.0

Node.js is an open-source, cross-platform, back-end JavaScript runtime environment that runs on the V8 engine and executes JavaScript code outside a web browser.

  • V8: 9.1.269.39-electron.0

V8 is Google's open source high-performance JavaScript and WebAssembly engine, written in C++. It is used in Chrome and in Node.js, among others.

  • OS: Linux x64 5.11.0-41-generic

An operating system is system software that manages computer hardware, software resources, and provides common services for computer programs.

  • Oracle Virtual Box: Version 5.2.42_Ubuntu r137960

          Oracle VM VirtualBox is cross-platform virtualization software.

RDKV Emulator Build Steps

Follow below steps to build rdkv emulator dunfell image along with rdk services

// TODO

Source code setup and Run application

Follow below steps to run application on host pc and create installer package

  • step 1 - get the emulator src code (link will be added soon) then run below command

$ npm install

  • step 2 - run below command

$ npm run start

Create installer package

Follow below steps to create installer package for linux/windows/mac

  • Need to install electron-packager and electron-installer-debian globally

$ sudo npm install -g electron-packager

             $ sudo npm install -g electron-installer-debian

  • Run below commands to make deb file for linux intaller.

$ electron-packager . --platform linux --arch x64 --out dist --overwrite

$ electron-installer-debian --src dist/EMV-linux-x64/ --arch amd64 --config config.json

  • Installer package will be created and stored inside the dist folder.

For the complete documentation on electronjs refer link: https://www.electronjs.org/.

Installation

  • Installer package will be created for Emulator app manager ui: emulatormanager_1.0.0_amd64.deb
  • Installer package will be created for RDK remote: rdk_remote.deb (updated deb package name will be updated soon)
  • Double click on installer deb package, default linux software install window will appear and progress bar will be displayed
  • On successful installation user/developer will be able to launch emulator app manager ui and RDK remote by selecting the RDK-V emulator icon and RDK remote icon from apps
  • RDK remote can be launched from emulator app manager > remote manager

Features

Emulator IP Address Configuration

  • Developer has to configure the rpi device/emulator ip address, after device ip configuration emulator app manager will be able to communicate with rpi/emulator.

VM Manager

  • Install image: By clicking on install image button developer will get the option to provide instance name, select added image from the list ( or add image by clicking on add image button) and install image into the vm.

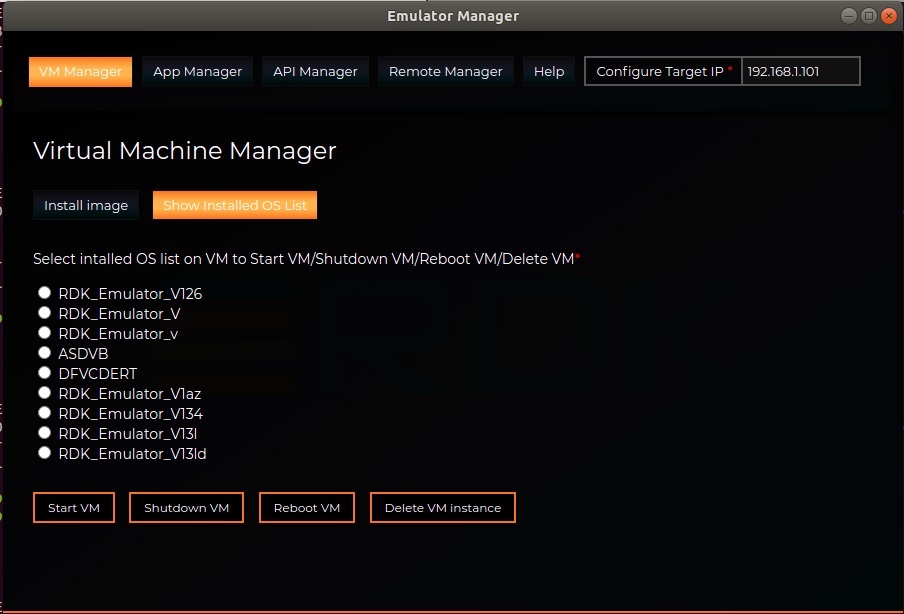

  • Show installed OS List: By default on launch VM manager installed os list will be display (show installed os list tab will be active), developer can see the list of installed images into the vm on the show installed list screen.
  • Start VM: By clicking on start vm button developer can start the vm.
  • Shutdown VM: By clicking on shutdown vm button developer can power off the vm.
  • Reboot VM: By clicking on reboot vm button developer can restart/reboot the vm.
  • Delete VM instance: By clicking on delete vm instance developer can remove/delete the vm instance.

App Manager

  • Set app url: Developer having the option to set the application url which is running on host machine and on clicking launch button app will be launched on emulator.
  • launch ResidentApp: By clicking on launch residentapp button default residentapp will be launched.
  • Launch IDE: By clicking on launch ide button developer can launch the pre-configured vs code and do modification in the code after that need to run $ lng dev command and immediately changes will reflect on emulator.
  • Automate tests option: By clicking on automate tests button developer will get the option to execute the test scripts (pre-configured). On submit selected script will be executed and developer will be able to see the results on emulator.

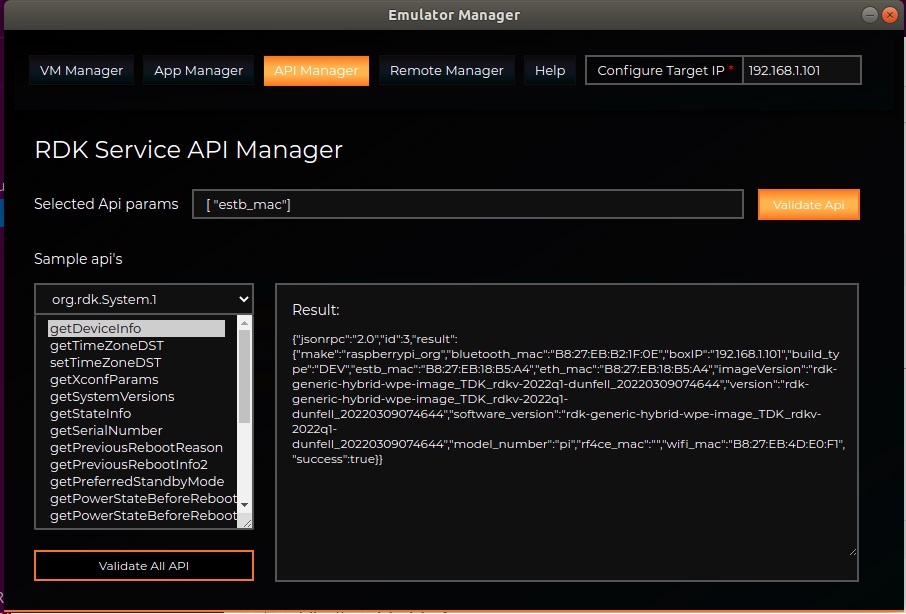

Api Manager

  • Validate Api: Developer can use this option to validate the plugin api's by selecting api from dropdown and click/select api from the list and click on "Validate Api" button.
  • Validate All Api: Developer can use this option to validate the plugin api's by selecting multiple api's from dropdown and click/select api from the list and click on "Validate All Api" button.

Remote Manager

  • Launch remote: Developer can choose the remote from the available remotes listed in remote manager and on clicking use this button selected remote will be launched on window, as a separate app.

Help

FAQ's

1. How to set rpi or emulator ip in emulator manager app?
    We can provide target machine  ip address in ip box which appears on right-top side.

2. How to add image in vm manager?

    Select "Install image" option from vm manager tab, then select "Add image" button then we need to select the image from the file browser box.

3. How to install OS in oracle virtual machine ?
    Select "Install image" option from vm manager tab, then select image which is appear on above install button and provide instance name (*) then select install button. Selected image will be installed on virtual machine.

4. How to delete image from list?
    Select "Install image" option from vm manager tab and then select delete option.

5. How to boot virtual machine OS?

    Select "Show Installed OS List" option from vm manager tab and then select installed os from the list and then select start button.

6.What is use of "Launch ResidentApp" option?
   "Launch ResidentApp" option allow to launch residentapp from host machine to target machine.

    Follow below steps to launch resident from host machine to target machine.

  1. Select "Open IDE" option from app manager tab.
  2. Select source code then open source code.
  3. Press "ctlr+~" key to open vs code terminal.
  4. Run lng run command.
  5. Select "Launch ResidentApp" option from app manager tab.

7. How to execute test script?
    Select  "Automate Test" option from app manager tab and then select "test script" from list and then select submit button.

8. What is use of Add Script option?
   Add script option allow to create test script and add in the list.

9. What is use of delete script option?

    We can remove the selected script from the list by using "Delete script" option.

10. How to test api from emulator manager/api manager?

      Select api from "Api list"  result will be appear above "Api list". we can modify Api params  in "Selected Api params" text fields and then select "Validate Api" button to make Api request.

11. What is use of "Validate all Api" option?
      Select apifrom "Api list"  result will be appear above "Api list". we can modify Api params  in "Selected Api params" text fields and then select "Validate Api" button to make Api request.

12. How to launch virtual remote?
      Select  "Use this " option from remote manager tap and then enter R-pi or Emulator ip address in remote app. Ip address will appear in bottom. After enter the ip address need to hit enter key.

In progress Tasks:

  • RDKV Emulator App Manager UI improvisation
  • Mouse over effect and tooltip will be shown in emulator manager ui buttons
  • Images/screenshots need to update with the latest changes
